MSI Preowned · Hand-tested

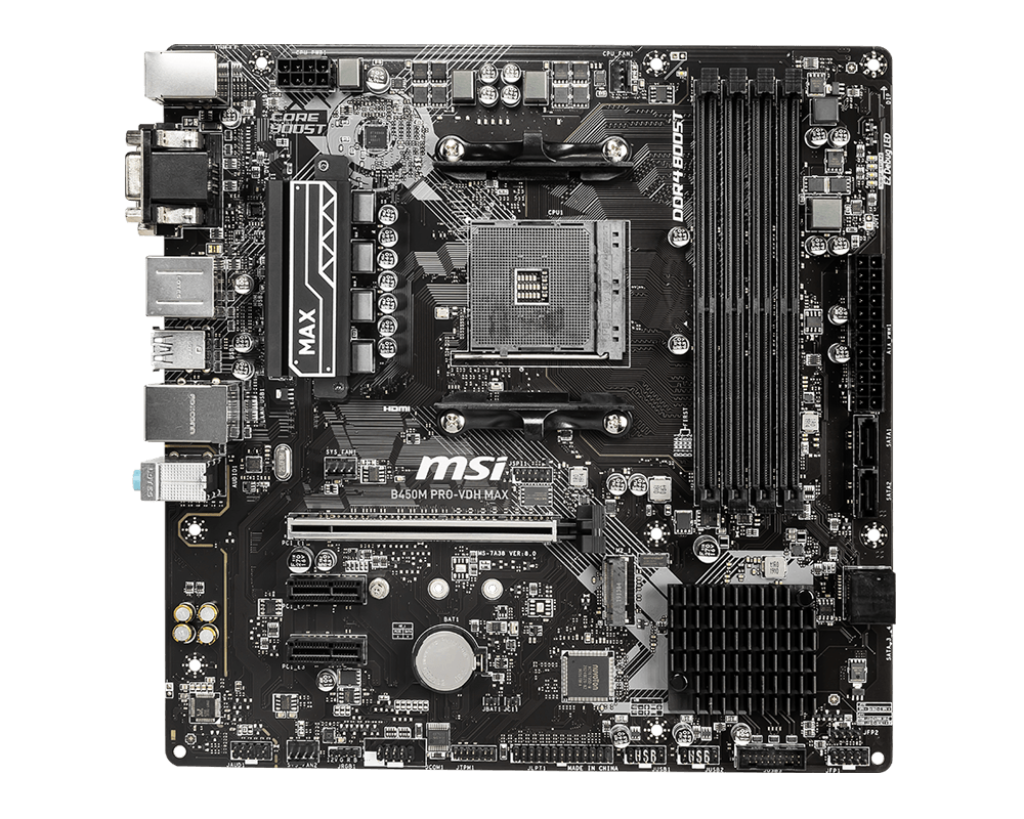

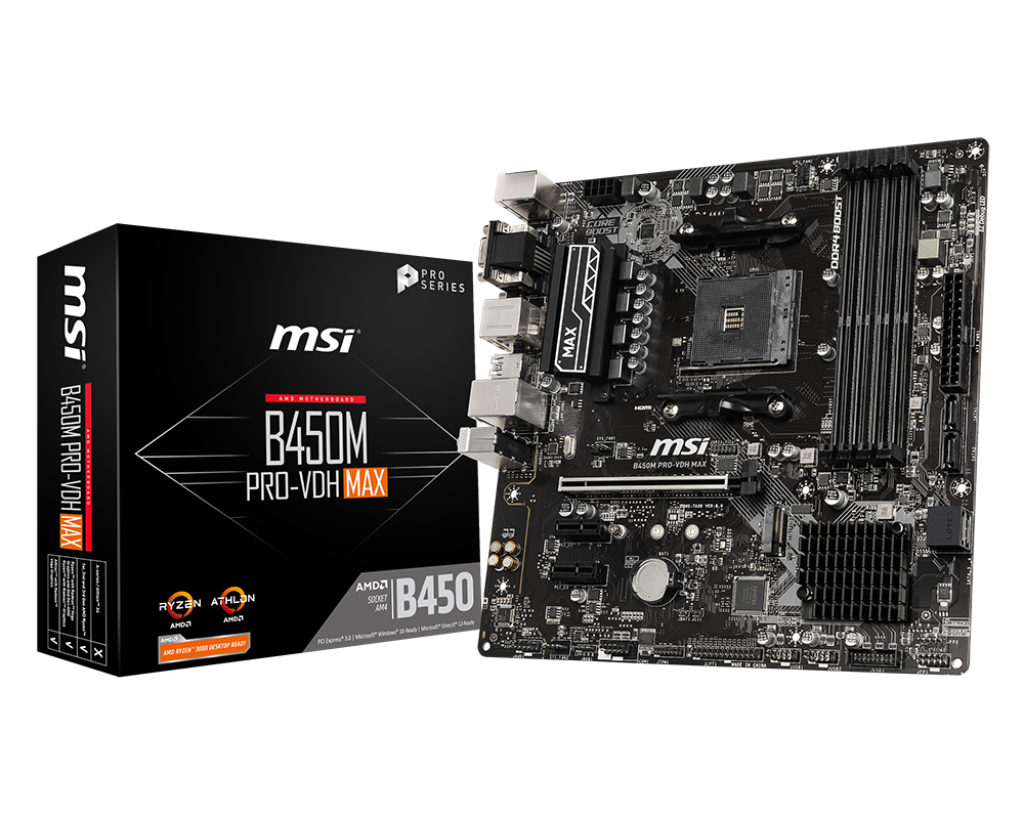

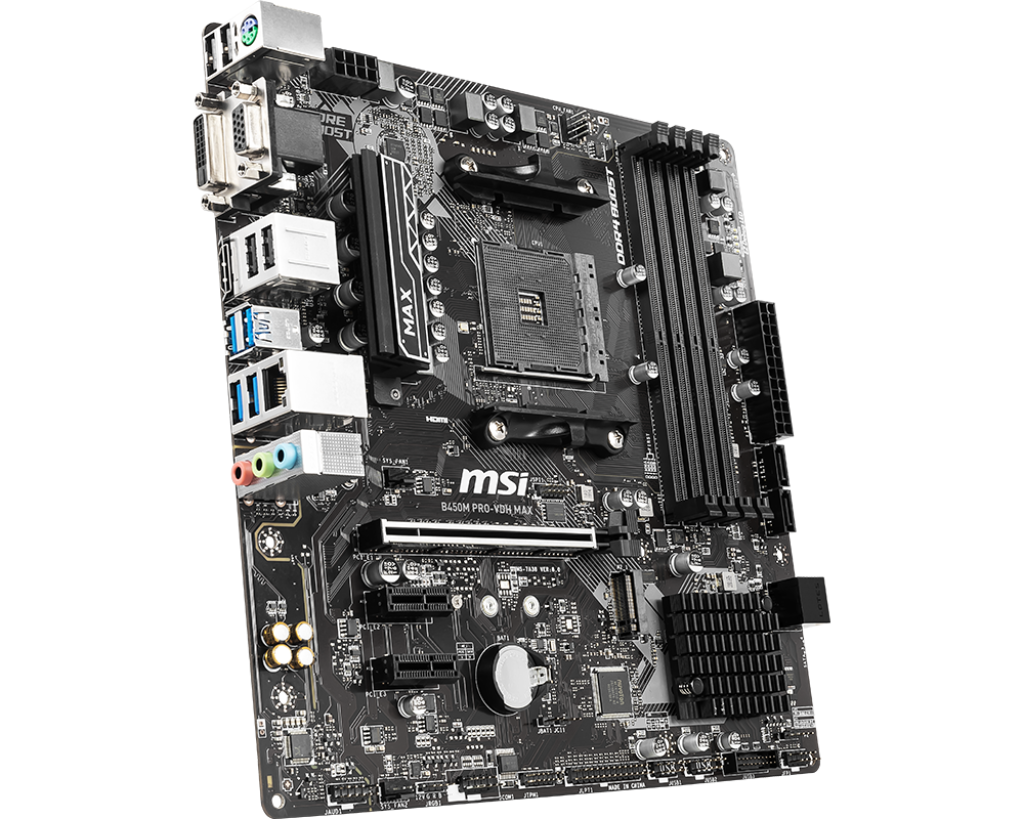

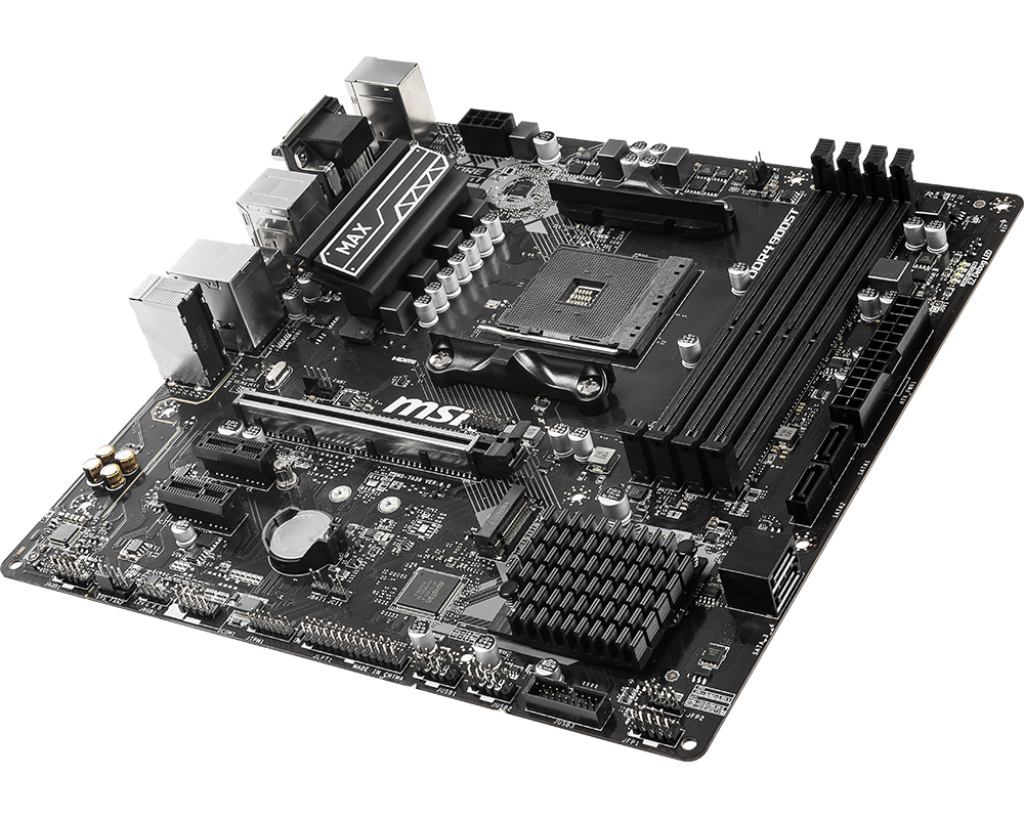

MSI B450M PRO-VDH MAX

₹4,999 MRP ₹12,75061% off

Inclusive of all taxes · You save ₹7,751

Sold out

  • Model: Pro VDH MAX
  • Socket: B450 AM4
  • DIMM Slots: 4
  • Max Memory: 128 GB
Notify me on WhatsApp Have a question? Chat with us on WhatsApp before you buy
  • Hand-testedRun and checked before listing
  • Tracked delivery3–7 days across India
  • Secure paymentUPI, cards & credit-card EMI
  • Damage coverReport within 24 hours

DATASHEET ⬇️:

SpecificationDetails
SocketAM4
ChipsetAMD® B450 Chipset
Memory ChannelDual
DIMM Slots4
Max Memory (GB)128
PCI-E x161
PCI-E x12
SATAIII4
M.2 Slot1
TPM (Header)1
USB 3.2 Ports (Front)2 (Gen1, Type A)
USB 3.2 Ports (Rear)4 (Gen1, Type A)
USB 2.0 Ports (Front)4
USB 2.0 Ports (Rear)4
Serial Ports (Front)1
Parallel Port (Front)1
Audio Ports (Rear)Realtek® ALC892/ALC897 Codec
DVI-D1
VGA1
HDMI1
DirectX12
CPU SupportWindows® 10 64-bit
Windows® 7 64-bit*
Form Factorm-ATX
───────────────────────────────────────────────
To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
───────────────────────────────────────────────



Processor

Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4

See supported processors

Chipset

AMD® B450 Chipset

Memory

  • 4 x DDR4 memory slots, support up to 128GB *ComboPI 1.0.0.3-based and above BIOS are required.1
    • Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
    • For AMD Ryzen Gen3 (R5/R7/R9)
      • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866 MHz (by A-XMP OC MODE)
    • For AMD Other Processors
      • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
  • Supports Dual Channel mode
  • Supports ECC UDIMM memory (non-ECC mode)
  • Support non-ECC UDIMM memory
  1. Please refer www.msi.com for more information on compatible memory.

Slots

  • 1 x PCIe 3.0 x16 slot
    • 1st, 2nd and 3rd Gen AMD Ryzen™ support x16 mode
    • Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support x8 mode
    • Athlon™ with Radeon™ Vega Graphics support x4 mode
  • 2 x PCIe 2.0 x1 slots

Onboard Graphics

  • 1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz12
  • 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz12
  • 1 x HDMI™ 2.0b with HDR port, supports a maximum resolution of 4K @60Hz123
  1. Only support when using Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics processors
  2. Maximum shared memory of 2048 MB
  3. Graphics specifications may vary depending on the CPU installed.

Storage

AMD® B450 Chipset

  • 4 x SATA 6Gb/s ports
    • Supports RAID 0, RAID1 and RAID 10
  • 1 x M.2 slot (Key M)
    • Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s
    • Supports 2242/ 2260 /2280 storage devices

USB

AMD® B450 Chipset

  • 2 x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connector
  • 8 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors)

AMD® processor

  • 4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Audio

Realtek® ALC892/ALC897 Codec

  • 7.1-Channel High Definition Audio

LAN

  • 1 x Realtek® 8111H Gigabit LAN controller

Internal connectors

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
  • 1 x 4-pin CPU fan connector
  • 2 x 4-pin system fan connectors
  • 1 x Front panel audio connector
  • 2 x Front panel connectors
  • 1 x TPM module connector
  • 1 x Chassis Intrusion connector
  • 1 x Serial port connector
  • 1 x Parallel port connector
  • 1 x RGB LED strip connector
  • 1 x Clear CMOS jumper

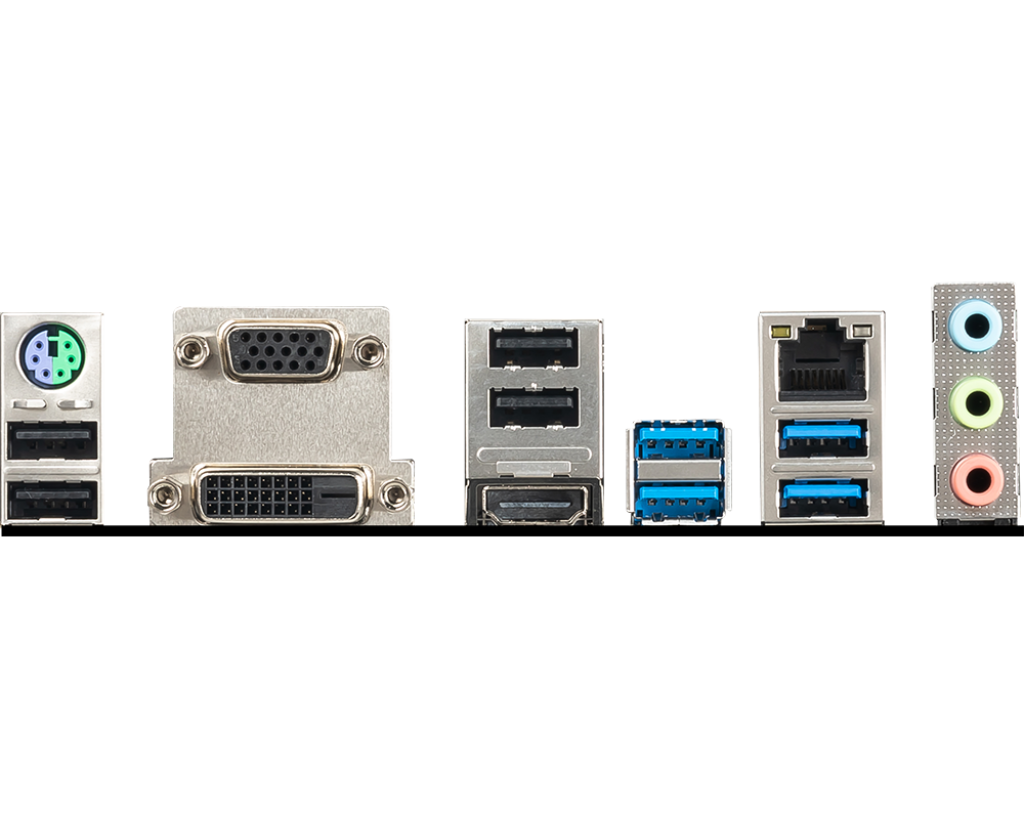

Back panel ports

  1. PS/2
  2. VGA Port
  3. USB 2.0 Port
  4. USB 3.2 Gen1
  5. LAN Port
  6. HD Audio Connectors
  7. DVI-D Port
  8. HDMI™ Port
MSI B450M PRO-VDH MAX back panel ports

Dimensions

  • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
  • m-ATX Form Factor

Mounting

8 mounting holes

Operating System

  • Support for Windows® 11 64-bit
  • Support for Windows® 10 64-bit
  • Support for Windows® 7 64-bit
    * To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.

Box content :

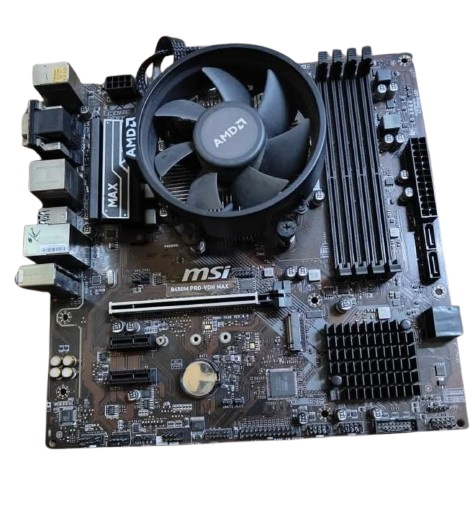

*PRODUCT IS PREOWNED*

  • Original Box may not be provided ✅
  • 7 DAYS TESTING WARRANTY WILL BE PROVIDED ✅
